UL20276 36C*26AWG color core pair strap shield DB44 black 1000M industrial wire harness
1. Product description
UL20276 36C*26AWG color core pair strap shield DB44 black 1000M industrial wire harness it consists of 36 colored core wires, each of which uses 26AWG (American wire gauge) wire size. This specification is suitable for medium current transmission and provides a sufficient number of wires to meet a variety of connection requirements. The core wires in the industrial harness are arranged in a twisted pair structure, which is conducive to reducing electromagnetic interference and crosstalk. One end of the industrial harness is equipped with a DB44 connector, a connector commonly used in industrial equipment and communication equipment. The DB44 connector provides solid connection performance and high reliability, making it easy to connect to other devices.
Feel free to contact with us, if you ever needed to consider your wire harness solution.
1.1 Application area
I: Automation equipment: The industrial wiring harness can be used in a variety of automation equipment, such as industrial robots, automatic assembly lines, automated production equipment, etc. The harness can provide stable signal transmission and support data communication and control between sensors, actuators and controllers.
II: Instrumentation: For industrial instrumentation, test equipment, and measurement systems, this industrial harness can be used to connect components such as sensors, probes, displays, and more. The wiring harness can ensure accurate signal transmission and data acquisition, and ensure the reliability and accuracy of the instrumentation system.
III: Robotics: In the field of robotics, this industrial harness can be used for internal connections of parts such as robot arms, joints, and end effectors. The industrial wiring harness is capable of withstands mechanical motion and vibration and provides reliable power and signal transmission to meet the requirements of robotic motion control and sensing systems.
1.2 Feature
I: Multi-core wire design: The industrial wiring harness consists of 36 colored core wires, providing multiple signal transmission channels. This makes the harness suitable for multiple connection requirements and can transmit multiple signals or data simultaneously.
II: Twisted-pair structure: The core wires in the industrial harness adopt twisted-pair structure, that is, two or more core wires are twisted together in a specific way. The twisted pair structure helps to reduce electromagnetic interference and crosstalk, and improve the stability and anti-interference ability of the signal.
III: Shielding design: The industrial wiring harness has a metal shielding structure, which is used to suppress the influence of external electromagnetic interference on signal transmission. Effectively protect the signal inside the harness from the influence of external interference.
2. Product information
| Product Name | UL20276 36C*26AWG color core pair strap shield DB44 black 1000M industrial wire harness |
| Harness material | Pass ISO13485,ISO9001 UL and ROHS certification |
| Product application | Industrial equipment, large machinery and equipment |
| Length, color | Customizable |
| Samples | Samples confirmed first before mass production |
| Serve | Whole-course specially-assigned follow-up, to provide fast and efficient service |
| Test requirement | Electromagnetic compatibility (EMC) test, shielding efficiency test, signal integrity test |
| MOQ | Negotiable |
| After-sales service | Authentic guaranteed, factory outlets center |

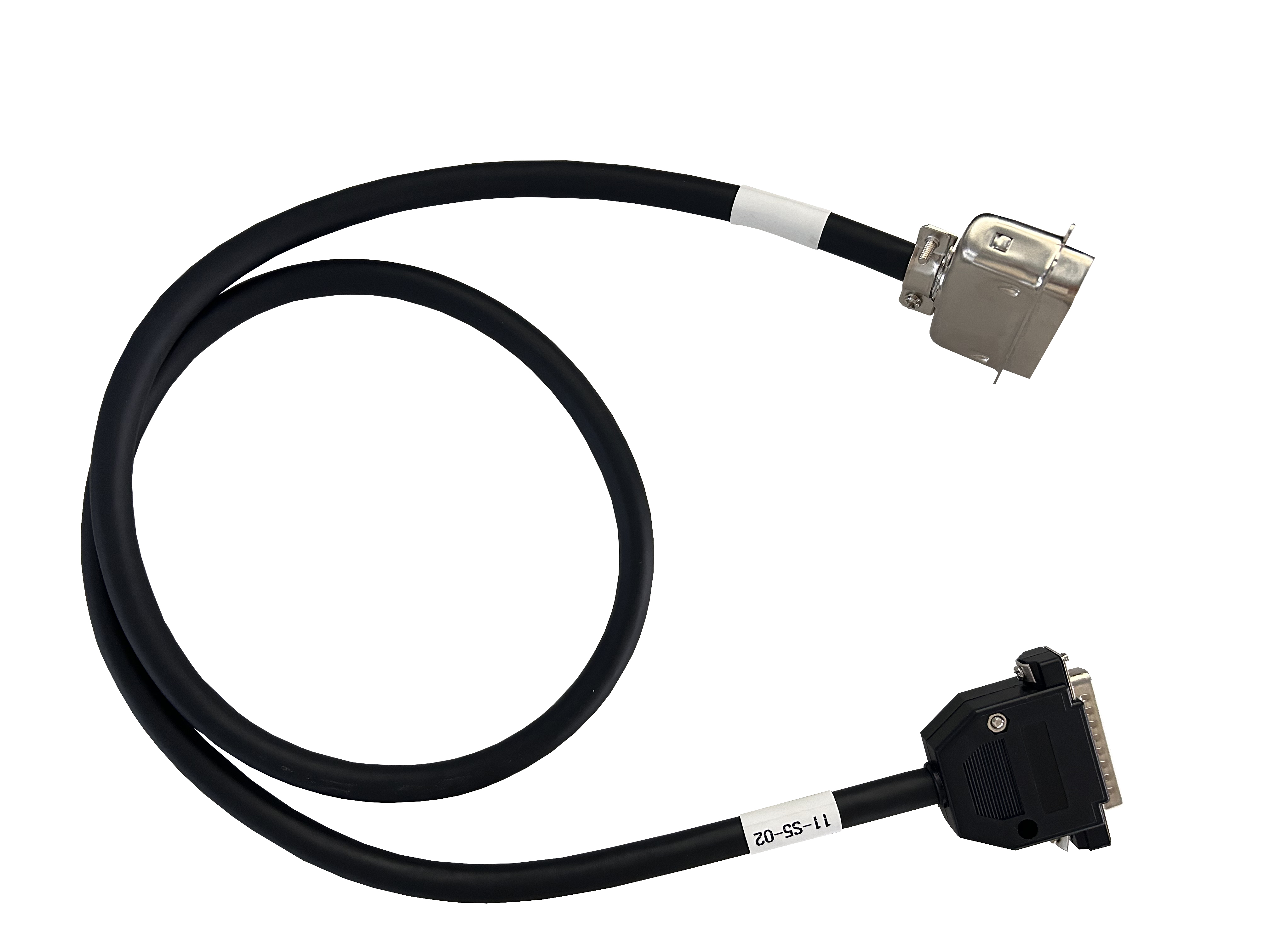

2.1 Picture of real products
3.Main products
I,Wiring harness of industrial control equipment:
Power wiring harness, signal wiring harness, control wiring harness, data wiring harness, video wiring harness, motor wiring harness, debugging wiring harness, cabinet wiring harness.
II,Medical equipment wire harnesses:
Endoscope wire harness, infusion pump power cord, ECG lead wire, monitor cable, electric operating table wire harness, electric knife wire harness and mechanical arm wire harness.
III,New energy wire harnesses:
Charging harness, energy storage harness, electric vehicle harness, navigation harness, automotive harness, instrument panel harness, sensor harness, compressor harness.
IV,Other equipment wire harnesses:
Communication equipment wiring harness, outdoor waterproof wiring harness communication equipment wiring harness, power cord/distribution box wiring harness, etc. Welcome to draw custom wiring harness.
